Priefert Gates

  • Product Features

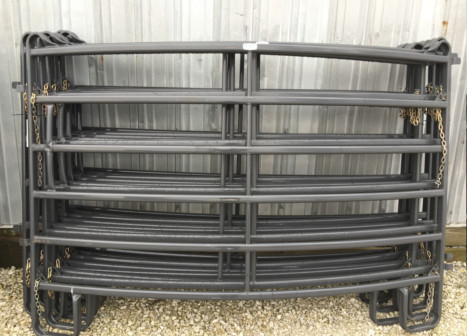

    8′ Premier Curved Panel

    Specially designed for use in constructing the sweep tub in Priefert′s Premier Open Sweeps, the PCP is part of our number one selling line of cattle panels and accessories. This 8′ curved panel has both connector brackets and chain connectors on each end to provide tight, secure connections. Like all Priefert Premier Panels, the PCP features a single piece vertical stay fitted through drilled rails and is constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility. The Architectural Grade Powder Coat Finish helps the product to resist rust, scratches, and fading to add years of life to your investment.

    Features:

    • Length: 96″
    • Height: 64″ to top rail (does not include fishhooks)
    • Weight: 73 lbs (All weights approximate)
    • Number of rails: 6
    • Number of stays: 1
    • Frame, Rails, and J-Legs constructed from 1 5/8″ OD 16 gauge Quadraform™ tubing
    • Vertical stay constructed from 1.050″ OD steel tubing, fitted through drilled rails
    • Architectural Grade Powder Coat Finish
    • Color: Grey
    • Not designed for making round pens for training horses
Get a Quote

  • Product Features

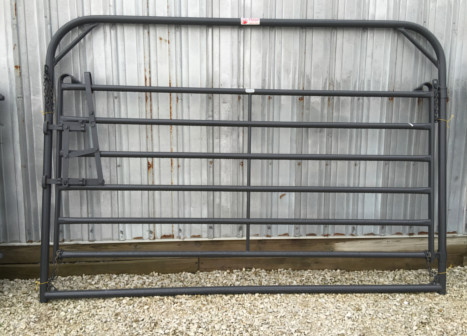

    10′ Premier Free Swing Bow Gate

    Our 10′ Premier Free Swinging Bow Gates are ideal for use as an alley, access, or sorting gates. The PFS10 is the standard sweep gate included in Priefert′s Premier Open Sweep Systems. As part of our number one selling line of cattle panels, these gates are ″Tough Enough for Cattle, Safe Enough for Horses.″ Each gate is constructed from our patented Quadraform™ tubing to allow for maximum strength and flexibility and each features a single piece vertical stay fitted through drilled rails to further increase the structural integrity. The Architectural Grade Powder Coat Finish helps the product resist rust, scratches, and fading to add years of life to your investment.

    • Overall Width: 126.5″
    • Number of gate rails: 6
    • Number of stays in the gate: 1
    • Bow gate frame constructed from 2.375″ OD 11 gauge tubing
    • Gate constructed from 16 gauge Quadraform™ tubing
    • Vertical stay constructed from 1.050″ OD steel tubing, fitted through drilled rails
    • Double Piston Lever Latch included
    • Architectural Grade Powder Coat Finish
    • Color: Grey
    • All weights are approximate
    • PFS10 is the standard sweep gate included with Priefert′s Premier Open Sweeps.
Get a Quote

  • Product Features

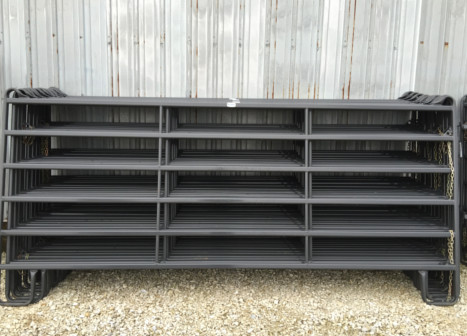

    Priefert Ranch Equipment 12′ Premier Panel

    Priefert 12 ft. Premier Panel is powder coated with oval tubing to give more vertical strength and forms stronger weld joints than round tubing. Chain connectors will hold the panels tight.

    • 16 gauge
    • welded steel construction
    • 64 in. high
    • 6 rail
